Belt fastener MS35 (min 1m)
Reference: JungtisMS35
0 €
/ m
Remaining stock
| Kaunas, Raudondvario pl. 162a, LT-47174: | 0 m | |
| Klaipėda, Mainų g. 31, LT-94101: | 0 m | |
| Vilnius, Savanorių pr. 65A, LT-03149: | 0 m | |
| Panevėžys, J. Janonio g. 1, LT-35101: | 0 m | |
| Shipping: 1-4 w.d. |
| Supplier warehouse 1 | 0 m | |
| Supplier warehouse 2 | 0 m | |
| Shipping: 5-7 w.d. |

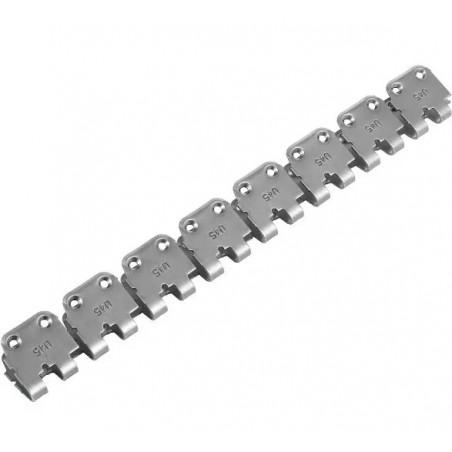

MS type rubber band connectors
It is an innovative and fast and simple connection of the strips, the connections are fixed with the help of screws by twisting.
Made of galvanized or stainless steel.
MS 25 type connectors are used when the tape thickness is from 3.5 mm to 7.5 mm thick and the shaft diameter is at least 75 mm.
The joint withstands a force of 450N/mm.
MS 35 type connectors are used when the tape thickness is from 4.5 mm to 10 mm thick and the shaft diameter is at least 90 mm.
The joint withstands a force of 630N/mm.
MS 45 type connectors are used when the tape thickness is from 6 mm to 11 mm thick and the shaft diameter is at least 125 mm.
The joint withstands a force of 630N/mm
| Item ID | 51500 |
| Barcode | 2005150000069 |
| NomNr | JungtisMS35 |
| Net weight | 1.2000 |
| Gross weight | 1.2600 |
| Belt thickness intervals, mm | 6.0-8.5 |
| Min kiekis | 1.0000 |
| Kartotinis | 1.0000 |
