NSK 6224 DDU bearing
Reference: 6224DDU_NSK
Manufacturer: NSK
204.54 €
/ pcs
With VAT: €247.49
Remaining stock
| Kaunas, Raudondvario pl. 162a, LT-47174: | 2025-05-13 | <10 pcs |
| Klaipėda, Mainų g. 31, LT-94101: | 0 pcs | |
| Vilnius, Savanorių pr. 65A, LT-02300: | 0 pcs | |
| Panevėžys, J. Janonio g. 1, LT-35101: | 0 pcs | |
| Shipping: 1-4 w.d. |
| Supplier warehouse 1 | 0 pcs | |
| Supplier warehouse 2 | 0 pcs | |
| Shipping: 5-7 w.d. |
Single-row groove ball bearings are the most common type of rolling bearings. Their use is very widespread. The raceway grooves on both the inner and outer rings have circular arcs of slightly lager radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
| Brand | NSK |
| Item ID | 72842 |
| Barcode | 2007284200049 |
| NomNr | 6224DDU_NSK |
| Net weight | 5.5300 |
| Gross weight | 5.8065 |
| Bearing bore type | Cylindrical hole |
| Types of bearing separator | Steel separator |
| Type of bearing seal | Plastic |

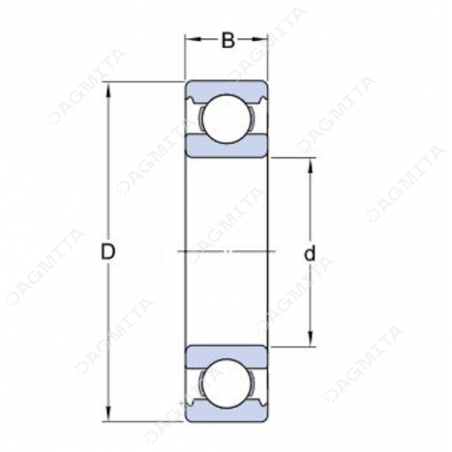

| Bearing inner diameter D, mm | 120 |
| Bearing outer diameter D, mm | 215 |
| Bearing width, mm | 40 |
